SFP-10G-SR Transceivers

Everything You Need to Know About SFP-10G-SR Transceivers

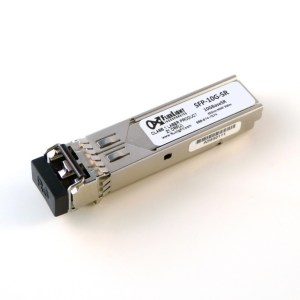

FluxLight SFP-10G-SRThe SFP-10G-SR is a Cisco compatible SFP+ transceiver module. It supports bi-directional, serial-optical data transfers across fiber optic networks and is equipped with two connectors: a SFP+ male edge connector that plugs into the host system, and a dual-LC female connector for the fiber optic cable.

The SFP-10G-SR is a Cisco 10GBase-SR (Short Reach) transceiver. The Cisco SFP+ transceiver supports 10 Gigabit Ethernet connectivity over 26 meters on standard multimode fiber. Link lengths of up to 300 meters can be achieved on OM3 multimode fiber, and up to 400-meter link lengths are possible over OM4 multimode fiber.

Because it is hot-swappable and MSA compliant, the Cisco SFP-10G-SR transceiver can be plugged directly into any Cisco SFP+ based transceiver port, without the need to power down the host network system. This capability makes moves, add-ons and exchanges quick and painless.

FluxLight’s SFP-10G-SR optical transceiver performs exactly like Cisco’s SFP-10G-SR module and is compatible with Cisco networking equipment. OEM specific configuration data is loaded onto FluxLight’s SFP-10G-SR at the factory, and each transceiver is tested for 100% functionality and compatibility prior to shipping. This particular transceiver also supports digital optical monitoring (DOM) for real-time diagnostics of voltage, power, temperature and other operating parameters.

For additional information on SFP-10G-SR transceivers, watch this video:

FluxLight’s SFP-10G-SR transceivers are brand new, never used and come with a 30-day money back / 100% satisfaction guarantee, and full 3-year replacement warranty.

In addition to the SFP-10G-SR, FluxLight carries a full line of similar Cisco® compatible transceivers, including the: SFP-10G-LR, SFP-10G-LRMSFP-10G-ER, and SFP-10G-ZR.

SFP-10G-SR Product Specifications:

Mfg. Compatibility: Cisco
Part Number: SFP-10G-SR
Form Factor: SFP+
Rate Category: 10GBase
Interface Type: SR
Connector Type: Dual-LC
Cable Type: multimode fiber
Digital Optical Mon. (DOM): Yes
TX Wavelength: 850nm
Reach: 300m
